Our Products

Gate Operator System

Each high-quality gate operator system is delivered fully assembled with electromagnetic drive locks. Features include:

  • Heavy-duty unit mounted on an all steel HD stand.

  • Equipped with weatherproof, heavy-gauge housing and a hinged access section for powering down unit before servicing.

  • Top-quality, plated rolled chain with permanently lubricated bearings.

  • Factory-installed electrical circuitry is ready to connect to power source and control stations. (please see LD-2 with AC-3 option for easy aftermarket accessories hook up)

  • Circuit has thermal overload protection; reversing contractors with built-in mechanical and electrical interlock to prevent double closure with heavy silver-to-silver contacts.

  • Designed to provide maximum protection. The over-center type clutch easily adjusts to load requirements (includes handle for manual operation in the event of power failure).

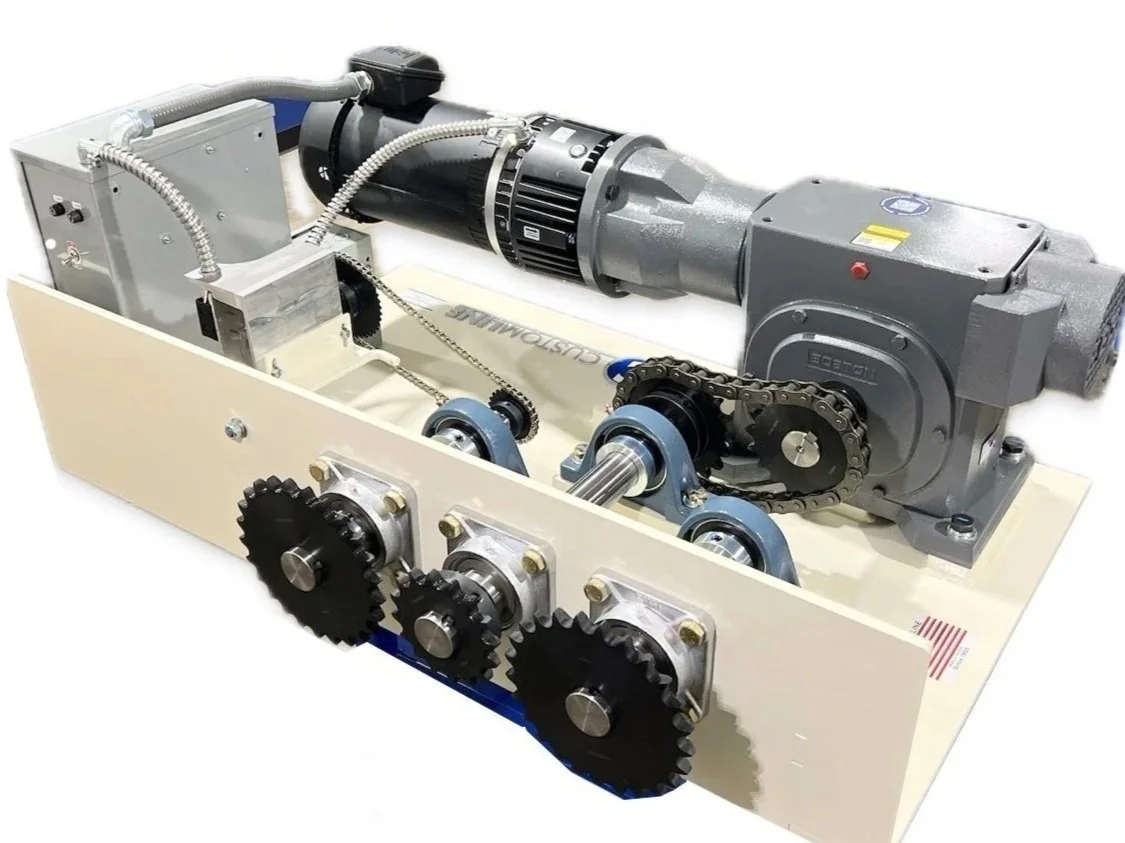

  • The power unit includes heavy-duty industrial-strength NEMA motor attached to a single stage right angle gear reducer and oil bath type lubrication.

  • Each unit is equipped with a magnetic brake/locking device that holds the gate rigidly closed and helps maintain accurate limit settings.

  • Contactors have U.L. rating with a minimum of 150% in excess of motor specifications.

  • Incoming line voltage can be single-phase or 3-phase, as required. (incoming 3-phase power will be utilized in motor type)

Our customizable gate openers guarantee sufficient reserve power and strength for an increased lifetime of performance. The power, delivered to the gate by the operator, is under full control at all times.

M-35 Automated Sliding Gate Operator 1 Horsepower, 1 Phase

  • M-35 1H1P is an automated gate operator equipped with a continuous duty Gear Reduction Motor. The maximum gate width is about 60+ feet.

  • Electrical Options:

    • Commercial-Grade Industrial Relay Control

    • Solid State Circuit Board Control

    • Single Phase 120/240VAC

M-35 Automated Sliding Gate Operator 1 Horsepower, 3 Phase

  • M-35 1H3P is an automated gate operator equipped with a continuous duty Gear Reduction Motor. The maximum gate width is about 60+ feet.

    • Commercial-Grade Industrial Relay Control

    • 3-PHASE 208/230/480VAC

M-35 Automated Sliding Gate Operator 2 Horsepower, 3 Phase

  • M-35 2H3P is an automated gate operator equipped with a continuous duty Gear Reduction Motor. Maximum Gate Width 125 Feet.

    • Commercial-Grade Industrial Relay Control

    • Solid State Curcuit Board Control

    • 3-PHASE 208/230/480VAC

M-2 Automated Swing Gate Operator Rebuid

  • Brushless DC motor, mechanical locking drive arm, optional electro-mechanical locking solenoid, battery back-up, solar charging.

    A Complete rebuild of your original M-2 operator will be performed, the unit will bolt back in it original location

M-20 DC Brushless Automated Sliding Gate Operator

  • Brushless DC motor, electromagnetic clutch, battery back-up, solar power chargeable, 2 HP for 60+ foot gate with solid state controller.

    U.L. 325 Compliant

M-53, M-55 & M-57 Automated Sliding Gate Operator (CALL FOR PRICE)

  • Gate With Over 75-135 Feet: 3HP 3-Phase 60 Cycle Soft Start Unit. Electromagnetic Clutch and Brake (dependent on weight and use).

  • Gate With Over 125 Feet: 5HP 3-Phase 60 Cycle Soft Start Unit. Electromagnetic Clutch and Brake (dependent on weight and use).

  • Gate With Over 175 Feet: 7HP 3-Phase 60 Cycle Soft Start Unit. Electromagnetic Clutch and Brake (dependent on weight and use).
